FlySpy, ein 2.4GHz Scanner

JETI-Telemetrieschnittstelle - mit Arduino

Inhalt:
1. Schnittstelle des FlySpy zur Jeti - Telemetrie
1.1. HW Schnittstelle Raspberry Pi zum Arduino ( Version 1)
1.2. zweiter Versuch Adapter-Platine ohne verlötete Pull-Up-Wiederstände (per SW realisiert) (Version 2)
1.3. aktuelle Version ohne Adapter-Platine und ohne verlötete Pull-Up-Wiederstände (per SW realisiert) (Version 3)
1.4. Software Arduino

1. Schnittstelle des FlySpy zur Jeti - Telemetrie

1.1. HW Schnittstelle Raspberry Pi zum Arduino ( Version 1)

Im ersten Versuch wird eine parallele Schnittstelle des GPIO-Moduls des Raspberry PI zum Arduino realisiert

Steckerbelegung:
Raspberry Pi Flachbandkabel Arduino
Buchse Stecker
1 Bit1Pin = 6; //Digital
2 Bit2Pin = 7; //Digital
3 Bit4Pin = 8; //Digital
4 Bit8Pin = 9; //Digital
5 Bit16Pin = 10; //Digital
6 Bit32Pin = 11; //Digital
7 Plus 5 V vom Pi
8
9
10 Masse


1.2. zweiter Versuch Adapter-Platine ohne verlötete Pull-Up-Wiederstände (per SW realisiert) (Version 2)

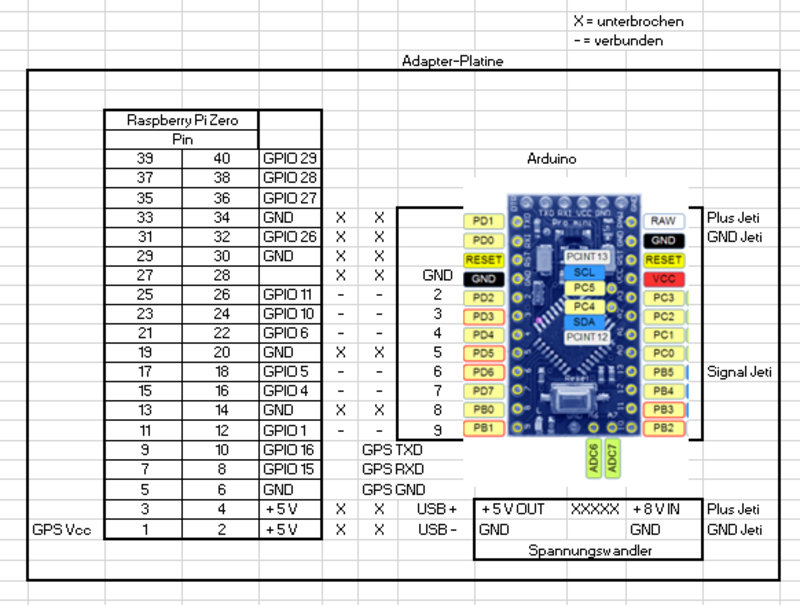

In der neuen Variante werden sowohl auf der Raspberry Pi Zero-Seite als auch auf dem Mini-Arduino die Pull-Up-Widerstände per Software gesetzt. Die Adapterplatine sieht dann wie folgt aus: upload:Adapterplatine%20V2b.png

Link zum *.xls: upload:Belegung%20Adapterplatine.xlsx

Raspberry Pi übertragenes Bit Arduino
GPIO01 1er Bit1Pin = 9
GPIO04 2er Bit2Pin = 7
GPIO05 4er Bit4Pin = 6
GPIO06 8er Bit8Pin = 4
GPIO10 16er Bit16Pin = 3
GPIO11 32er Bit32Pin = 2

1.3. aktuelle Version ohne Adapter-Platine und ohne verlötete Pull-Up-Wiederstände (per SW realisiert) (Version 3)

In der neuen Variante werden sowohl auf der Raspberry Pi Zero-Seite als auch auf dem Mini-Arduino die Pull-Up-Widerstände per Software gesetzt. Die Adapterplatine entfällt da der Arduino und das GPS direkt auf den Raspberry aufgesetzt werden

Raspberry Pi übertragenes Bit Arduino / GPS
GPIO02 1er Ard.: Bit1Pin = 9
GPIO03 2er Ard.: Bit2Pin = 8
GPIO04 4er Ard.: Bit4Pin = 7
GPIO17 8er Ard.: Bit8Pin = 5
GPIO27 16er Ard.: Bit16Pin = 4
GPIO22 32er Ard.: Bit32Pin = 3
Pin 1 +3,3 V GPS: Vcc
Pin 6 Masse GPS: Masse
Pin 8 TX / RX GPS TX / RX
Pin 10 TX / RX GPS: TX / RX

1.4. Software Arduino

Code des Arduino (passend zur ersten Adapterplatine mit verlöteten Pull-up-Widerständen): (Version 1)

/* Jeti Sensor EX Telemetry C++ Library Simple Main program -------------------------------------------------------------------- Copyright (C) 2015 Bernd Wokoeck *** Extended notice on additional work and copyrights, see header of JetiExProtocol.cpp *** Wiring: Arduino Mini TXD-Pin 0 <-- Receiver "Ext." input (orange cable) Ressources: Uses built in UART of Arduini Mini Pro 328 or one of 3 Teensy UARTs Version history: 0.90 11/22/2015 created 0.95 12/23/2015 new sample sensors for GPS and date/time 0.96 02/21/2016 comPort number as optional parameter for Teensy in Start(...) sensor device id as optional parameter (SetDeviceId(...)) 1.02 03/28/2017 New sensor memory management. Sensor data can be located in PROGMEM **************************************************************/ #include "JetiExProtocol.h" #include LiquidCrystal_I2C lcd (0x27, 2, 1, 0, 4, 5, 6, 7); // PCF8754 - 0x27, PCF8754A - 0x3F ! JetiExProtocol jetiEx; enum { ID_FREQUENCE_COUNT = 1, ID_FREQUENCE_AVERAGE_LOW = 2, ID_FREQUENCE_AVERAGE_HIGH = 3, }; // id from 1..15 JETISENSOR_CONST sensors[] PROGMEM = { // id name unit data type precision 0->0, 1->0.0, 2->0.00 { ID_FREQUENCE_COUNT, "FreqCnt", "Ch", JetiSensor::TYPE_14b, 0 }, { ID_FREQUENCE_AVERAGE_LOW, "FreqAvgLow", "Ch", JetiSensor::TYPE_14b, 0 }, { ID_FREQUENCE_AVERAGE_HIGH, "FreqAvgHigh", "Ch", JetiSensor::TYPE_14b, 0 }, 0 // end of array }; long counter = 0; const int CntBit1Pin = 6; //Digital const int CntBit2Pin = 7; //Digital const int CntBit4Pin = 8; //Digital const int CntBit8Pin = 9; //Digital const int AverageLowPin = 10; //Digital const int AverageHighPin =11; //Digital int CntBit1Val = 0; int CntBit2Val = 0; int CntBit4Val = 0; int CntBit8Val = 0; int AverageLowVal = 0; int AverageHighVal =0; void setup() { #ifdef CORE_TEENSY Serial.begin ( 9600 ); #endif // Pinmodes for switches pinMode (CntBit1Pin, INPUT); pinMode (CntBit2Pin, INPUT); pinMode (CntBit4Pin, INPUT); pinMode (CntBit8Pin, INPUT); pinMode (AverageLowPin, INPUT); pinMode (AverageHighPin, INPUT); jetiEx.Start ( "MSF", sensors ); // jetiEx.SetJetiboxText( JetiExProtocol::LINE1, "Start 1" ); // jetiEx.SetJetiboxText( JetiExProtocol::LINE2, "Start 2" ); // start LCD-Display lcd.begin (16, 2); // for 16 x 2 LCD module lcd.setBacklightPin (3, POSITIVE); lcd.setBacklight (HIGH); lcd.home (); lcd.print ("2,4 GHz Messung"); lcd.setCursor (0, 1); lcd.print ("Rainer & Jochen"); delay (3000); lcd.clear (); } void loop() { long value; // Read switches CntBit1Val = digitalRead (CntBit1Pin); CntBit2Val = digitalRead (CntBit2Pin); CntBit4Val = digitalRead (CntBit4Pin); CntBit8Val = digitalRead (CntBit8Pin); AverageLowVal = digitalRead (AverageLowPin); AverageHighVal = digitalRead (AverageHighPin); value = CntBit1Val*1+CntBit2Val*2+CntBit4Val*4+CntBit8Val*8; value = value*6 ; // counter++; // zählt counter 1 hoch identisch wie counter = counter+1; // value = counter%100 ; if (AverageLowVal != 0) { jetiEx.SetSensorValue ( ID_FREQUENCE_AVERAGE_LOW, value ); lcd.setCursor (0, 1); lcd.print ("Low: "); lcd.print (value); } else if (AverageHighVal != 0) { jetiEx.SetSensorValue ( ID_FREQUENCE_AVERAGE_HIGH, value ); lcd.setCursor (8, 1); lcd.print ("High: "); lcd.print (value); } else { jetiEx.SetSensorValue ( ID_FREQUENCE_COUNT, value ); lcd.home (); lcd.setCursor (1, 0); lcd.print ("Actual: "); lcd.print (value); lcd.print (" Ch"); } // /* add your main program code here */ // //jetiEx.SetSensorValue( ID_FREQUENCE_COUNT, (counter) ); //jetiEx.SetSensorValue( ID_FREQUENCE_AVERAGE_LOW, (counter%100) ); //jetiEx.SetSensorValue( ID_FREQUENCE_AVERAGE_HIGH, (counter%20) ); jetiEx.DoJetiSend(); }

Code des Arduino (passend zur zweiten Version mit Software-Pull-up-Widerständen): (Version 2)

/* Jeti Sensor EX Telemetry C++ Library Simple Main program -------------------------------------------------------------------- Copyright (C) 2015 Bernd Wokoeck *** Extended notice on additional work and copyrights, see header of JetiExProtocol.cpp *** Wiring: Arduino Mini TXD-Pin 0 <-- Receiver "Ext." input (orange cable) Ressources: Uses built in UART of Arduini Mini Pro 328 or one of 3 Teensy UARTs Version history: 0.90 11/22/2015 created 0.95 12/23/2015 new sample sensors for GPS and date/time 0.96 02/21/2016 comPort number as optional parameter for Teensy in Start(...) sensor device id as optional parameter (SetDeviceId(...)) 1.02 03/28/2017 New sensor memory management. Sensor data can be located in PROGMEM **************************************************************/ #include "JetiExProtocol.h" #include LiquidCrystal_I2C lcd(0x27, 2, 1, 0, 4, 5, 6, 7); // PCF8754 - 0x27, PCF8754A - 0x3F ! JetiExProtocol jetiEx; enum { ID_FREQUENCE_COUNT = 1, ID_FREQUENCE_AVERAGE_LOW = 2, ID_FREQUENCE_AVERAGE_HIGH = 3, }; // id from 1..15 JETISENSOR_CONST sensors[] PROGMEM = { // id name unit data type precision 0->0, 1->0.0, 2->0.00 { ID_FREQUENCE_COUNT, "FreqCnt", "Ch", JetiSensor::TYPE_14b, 0 }, { ID_FREQUENCE_AVERAGE_LOW, "FreqAvgLow", "Ch", JetiSensor::TYPE_14b, 0 }, { ID_FREQUENCE_AVERAGE_HIGH, "FreqAvgHigh", "Ch", JetiSensor::TYPE_14b, 0 }, 0 // end of array }; long counter = 0; const int CntBit1Pin = 9; //Digital const int CntBit2Pin = 7; //Digital const int CntBit4Pin = 6; //Digital const int CntBit8Pin = 4; //Digital const int CntBit16Pin = 3; //Digital const int CntBit32Pin = 2; //Digital int CntBit1Val = 0; int CntBit2Val = 0; int CntBit4Val = 0; int CntBit8Val = 0; int CntBit16Val = 0; int CntBit32Val = 0; void setup() { #ifdef CORE_TEENSY Serial.begin( 9600 ); #endif // Pinmodes for switches ans pullup pinMode(CntBit1Pin, INPUT); // set pin to input digitalWrite(CntBit1Pin, HIGH); // turn on pullup resistors pinMode(CntBit2Pin, INPUT); digitalWrite(CntBit2Pin, HIGH); pinMode(CntBit4Pin, INPUT); digitalWrite(CntBit4Pin, HIGH); pinMode(CntBit8Pin, INPUT); digitalWrite(CntBit8Pin, HIGH); pinMode(CntBit16Pin, INPUT); digitalWrite(CntBit16Pin, HIGH); pinMode(CntBit32Pin, INPUT); digitalWrite(CntBit32Pin, HIGH); jetiEx.Start( "MSF", sensors ); // jetiEx.SetJetiboxText( JetiExProtocol::LINE1, "Start 1" ); // jetiEx.SetJetiboxText( JetiExProtocol::LINE2, "Start 2" ); // // start LCD-Display // lcd.begin (16, 2); // for 16 x 2 LCD module // lcd.setBacklightPin(3, POSITIVE); // lcd.setBacklight(HIGH); // lcd.home (); // lcd.print("2,4 GHz Messung"); // lcd.setCursor (0, 1); // lcd.print("Rainer & Jochen"); // delay(3000); // lcd.clear (); } void loop() { long value; // Read switches CntBit1Val = digitalRead(CntBit1Pin); CntBit2Val = digitalRead(CntBit2Pin); CntBit4Val = digitalRead(CntBit4Pin); CntBit8Val = digitalRead(CntBit8Pin); CntBit16Val = digitalRead(CntBit16Pin); CntBit32Val = digitalRead(CntBit32Pin); value = CntBit1Val * 1 + CntBit2Val * 2 + CntBit4Val * 4 + CntBit8Val * 8 + CntBit16Val * 16 + CntBit32Val * 32; // value = value*6 ; value = value * 1 ; jetiEx.SetSensorValue( ID_FREQUENCE_AVERAGE_LOW, value ); lcd.setCursor (0, 1); lcd.print ("Avg:"); lcd.print(value); // Durchschnittswert vom Raspberry übermittelt lcd.setCursor (7, 1); lcd.print ("3:"); lcd.print("xx"); // Durchschnittswert der letzten 3 Sekunden lcd.setCursor (12, 1); lcd.print ("8:"); lcd.print("yy"); // Durchschnittswert der letzten 8 Sekunden char AnzeigeBalken[20]; int xCount = value / 5; sprintf(AnzeigeBalken, ""); for (int i = 0; i < xCount; i++) { sprintf(AnzeigeBalken, "%s%s", AnzeigeBalken, "="); } // lcd.setCursor (1, 0); // lcd.print (AnzeigeBalken); // delay(500); // lcd.clear (); // counter++; // zählt counter 1 hoch identisch wie counter = counter+1; // /* add your main program code here */ // // jetiEx.SetSensorValue( ID_FREQUENCE_COUNT, (counter) ); // jetiEx.SetSensorValue( ID_FREQUENCE_AVERAGE_LOW, (counter%100) ); // jetiEx.SetSensorValue( ID_FREQUENCE_AVERAGE_HIGH, (counter%20) ); jetiEx.DoJetiSend(); }

Code des Arduino (passend zur aktuellen Version mit Software-Pull-up-Widerständen und ohne Adapterplatine): (Version 3)

/* Jeti Sensor EX Telemetry C++ Library Simple Main program -------------------------------------------------------------------- Copyright (C) 2015 Bernd Wokoeck *** Extended notice on additional work and copyrights, see header of JetiExProtocol.cpp *** Wiring: Arduino Mini TXD-Pin 0 <-- Receiver "Ext." input (orange cable) Ressources: Uses built in UART of Arduini Mini Pro 328 or one of 3 Teensy UARTs Version history: 0.90 11/22/2015 created 0.95 12/23/2015 new sample sensors for GPS and date/time 0.96 02/21/2016 comPort number as optional parameter for Teensy in Start(...) sensor device id as optional parameter (SetDeviceId(...)) 1.02 03/28/2017 New sensor memory management. Sensor data can be located in PROGMEM **************************************************************/ #include "JetiExProtocol.h" #include LiquidCrystal_I2C lcd(0x27, 2, 1, 0, 4, 5, 6, 7); // PCF8754 - 0x27, PCF8754A - 0x3F ! JetiExProtocol jetiEx; enum { ID_FREQUENCE_COUNT = 1, ID_FREQUENCE_AVERAGE_LOW = 2, ID_FREQUENCE_AVERAGE_HIGH = 3, }; // id from 1..15 JETISENSOR_CONST sensors[] PROGMEM = { // id name unit data type precision 0->0, 1->0.0, 2->0.00 { ID_FREQUENCE_COUNT, "FreqCnt", "Ch", JetiSensor::TYPE_14b, 0 }, { ID_FREQUENCE_AVERAGE_LOW, "FreqAvgLow", "Ch", JetiSensor::TYPE_14b, 0 }, { ID_FREQUENCE_AVERAGE_HIGH, "FreqAvgHigh", "Ch", JetiSensor::TYPE_14b, 0 }, 0 // end of array }; long counter = 0; const int CntBit1Pin = 9; //Digital const int CntBit2Pin = 8; //Digital const int CntBit4Pin = 7; //Digital const int CntBit8Pin = 5; //Digital const int CntBit16Pin = 4; //Digital const int CntBit32Pin = 3; //Digital int CntBit1Val = 0; int CntBit2Val = 0; int CntBit4Val = 0; int CntBit8Val = 0; int CntBit16Val = 0; int CntBit32Val = 0; void setup() { #ifdef CORE_TEENSY Serial.begin( 9600 ); #endif // Pinmodes for switches ans pullup pinMode(CntBit1Pin, INPUT); // set pin to input digitalWrite(CntBit1Pin, HIGH); // turn on pullup resistors pinMode(CntBit2Pin, INPUT); digitalWrite(CntBit2Pin, HIGH); pinMode(CntBit4Pin, INPUT); digitalWrite(CntBit4Pin, HIGH); pinMode(CntBit8Pin, INPUT); digitalWrite(CntBit8Pin, HIGH); pinMode(CntBit16Pin, INPUT); digitalWrite(CntBit16Pin, HIGH); pinMode(CntBit32Pin, INPUT); digitalWrite(CntBit32Pin, HIGH); jetiEx.Start( "MSF", sensors ); // jetiEx.SetJetiboxText( JetiExProtocol::LINE1, "Start 1" ); // jetiEx.SetJetiboxText( JetiExProtocol::LINE2, "Start 2" ); // // start LCD-Display // lcd.begin (16, 2); // for 16 x 2 LCD module // lcd.setBacklightPin(3, POSITIVE); // lcd.setBacklight(HIGH); // lcd.home (); // lcd.print("2,4 GHz Messung"); // lcd.setCursor (0, 1); // lcd.print("Rainer & Jochen"); // delay(3000); // lcd.clear (); } void loop() { long value; // Read switches CntBit1Val = digitalRead(CntBit1Pin); CntBit2Val = digitalRead(CntBit2Pin); CntBit4Val = digitalRead(CntBit4Pin); CntBit8Val = digitalRead(CntBit8Pin); CntBit16Val = digitalRead(CntBit16Pin); CntBit32Val = digitalRead(CntBit32Pin); value = CntBit1Val * 1 + CntBit2Val * 2 + CntBit4Val * 4 + CntBit8Val * 8 + CntBit16Val * 16 + CntBit32Val * 32; // value = value*6 ; value = value * 1 ; jetiEx.SetSensorValue( ID_FREQUENCE_AVERAGE_LOW, value ); lcd.setCursor (0, 1); lcd.print ("Avg:"); lcd.print(value); // Durchschnittswert vom Raspberry übermittelt lcd.setCursor (7, 1); lcd.print ("3:"); lcd.print("xx"); // Durchschnittswert der letzten 3 Sekunden lcd.setCursor (12, 1); lcd.print ("8:"); lcd.print("yy"); // Durchschnittswert der letzten 8 Sekunden char AnzeigeBalken[20]; int xCount = value / 5; sprintf(AnzeigeBalken, ""); for (int i = 0; i < xCount; i++) { sprintf(AnzeigeBalken, "%s%s", AnzeigeBalken, "="); } // lcd.setCursor (1, 0); // lcd.print (AnzeigeBalken); // delay(500); // lcd.clear (); // counter++; // zählt counter 1 hoch identisch wie counter = counter+1; // /* add your main program code here */ // // jetiEx.SetSensorValue( ID_FREQUENCE_COUNT, (counter) ); // jetiEx.SetSensorValue( ID_FREQUENCE_AVERAGE_LOW, (counter%100) ); // jetiEx.SetSensorValue( ID_FREQUENCE_AVERAGE_HIGH, (counter%20) ); jetiEx.DoJetiSend(); }
